The equipment removes slag and burrs from the workpiece surface in a multi-step process:

• Steel Hammer Disc Brushing Station: Removes slag from the surface of the workpiece using a specialiced steel hammer disc.
• Abrasive Belt Station: Eliminates large burrs and remaining slag particles effectively.

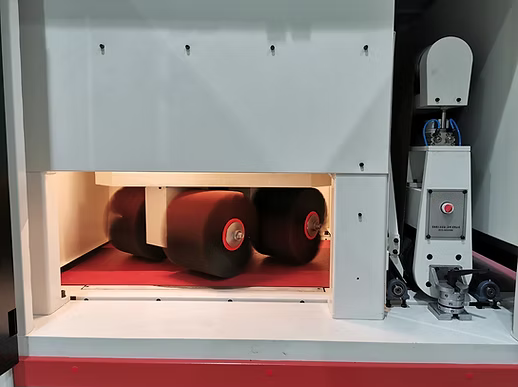

• Universal Sand Roller Brush System: Utilize four rotating sanding roller brushes to refine edges and inner holes. The process ensures no burrs remain, maintains the accuracy of the workpiece edges, and achieves uniform R-angle rounding (customisable using different abrasive belts and processes). The dimensional integrity of the workpiece is preserved throughout.

Additionally, the abrasive belt station and sanding roller brush system can operate independently:

• The Abrasive Belt Station is ideal for processing metal hairlines, polishing, peeling, and slag removal.
• The Sanding Roller Brush System ensures 360° deburring, particularly for laser-cut and CNC-punched sheet metal parts with protective coatings. This system removes burrs without damaging the coating or scratching the surface, thanks to specially designed soft abrasive brushes that target burrs only.



Conveying System

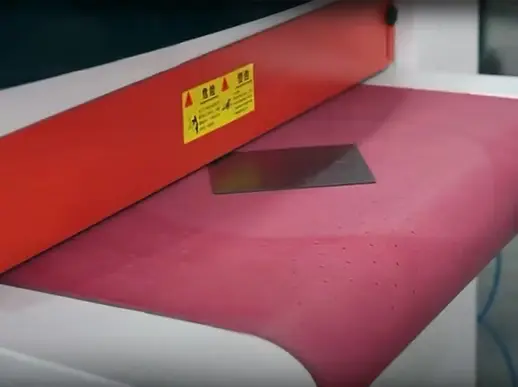

The equipment features a strong vacuum negative pressure adsorption system that securely holds workpieces over 50mm in size without additional tooling. For special workpieces, optional tooling can be used. The transmission system offers variable speed control for precise operation.

Dust and Safety Management

The machine includes a wet vacuum cleaner to minimize safety risks and efficiently manage grinding dust. A high-pressure, high-flow fan directs dust to a collection chamber, where it is captured through water spray deposition and filtered for environmental safety. Clean air is then discharged, ensuring a safe and clean working environment. The system also recycles and collects metal powder, supporting eco-friendly production practices.
